CAS No.: 63428-84-2

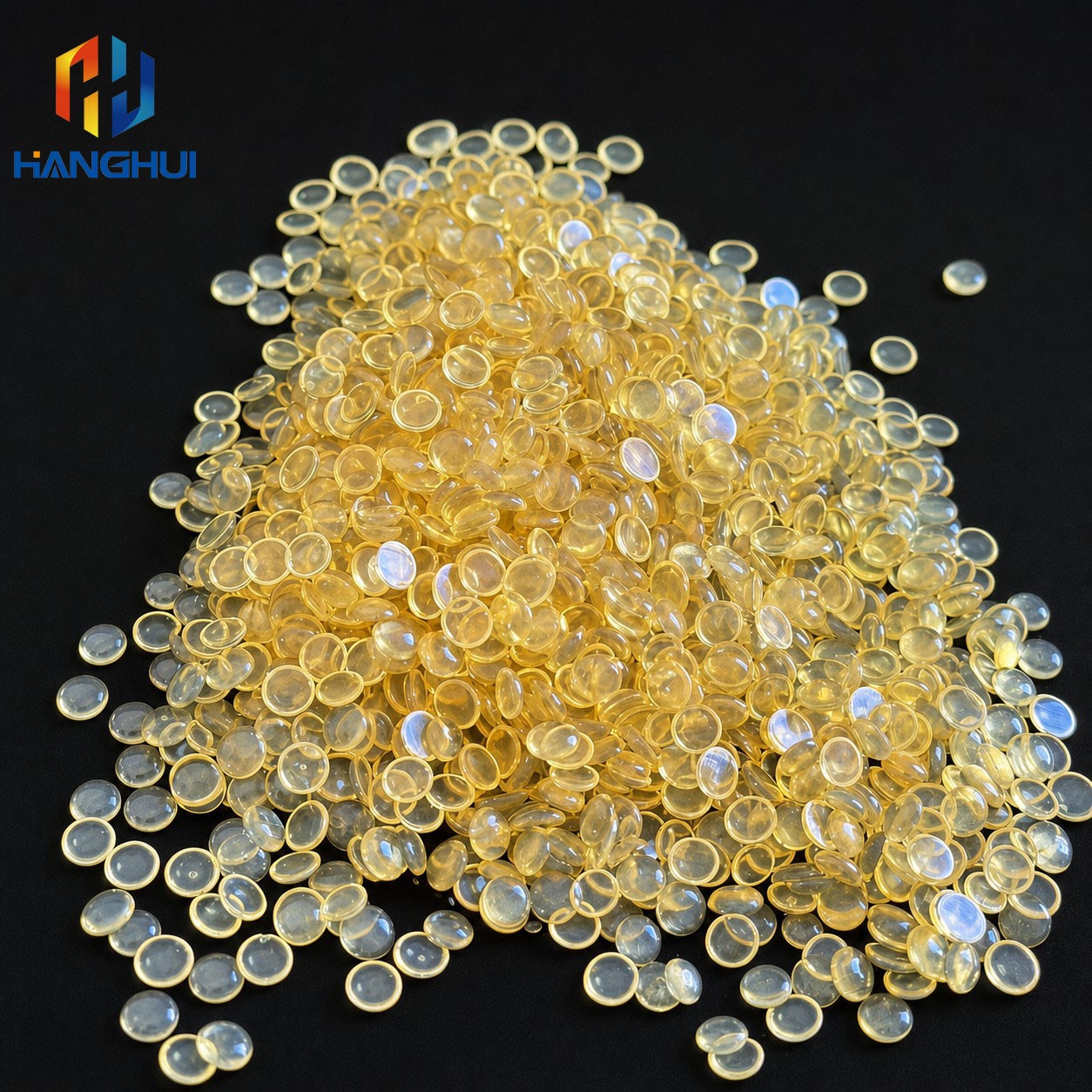

Appearance: Light yellow to yellow solid particles
Grades: HH-PA21 and HH-PA21C
Application: Alcohol-soluble flexographic inks for selected plastic films and gravure inks for paper
Packing: 25 kg net per paper-plastic laminated bag
Alcohol-soluble polyamide resin is a solid polyamide resin developed for compatible alcohol-containing printing ink systems. It provides good alcohol solubility and film-forming performance for flexographic inks on selected plastic films and gravure inks for paper.
Hanghui offers two grades: HH-PA21 for general alcohol-soluble systems and HH-PA21C for applications requiring improved low-temperature solution stability. Final suitability should be confirmed in the customer's complete ink formulation.
| Product Name | Alcohol-Soluble Polyamide Resin |
| CAS No. | 63428-84-2 |
| Available Grades | HH-PA21 / HH-PA21C |
| Appearance | Light yellow to yellow solid particles |
| Solubility | Soluble in compatible alcohols, including ethanol and isopropanol |
| Primary Applications | Flexographic printing inks for selected plastic films and gravure printing inks for paper |
| Property | HH-PA21 | HH-PA21C |
|---|---|---|
| Grade Description | General alcohol-soluble grade | Low-temperature-resistant alcohol-soluble grade |
| Color | ≤7 | ≤8 |
| Acid Value | ≤5 mg KOH/g | ≤5 mg KOH/g |
| Amine Value | ≤5 mg KOH/g | ≤5 mg KOH/g |
| Softening Point | 120 ± 5 °C | 120 ± 10 °C |
| Solution Freezing Point | ≤ 7 °C | -5 ± 5 °C |
| Solution Viscosity at 25 °C | 70-150 mPa·s | 70-150 mPa·s |
*The supplied source does not state the color scale or complete test methods. The solution viscosity and freezing-point values are understood to use a 50% resin solution in a solvent blend of IPA / ethanol / ethyl acetate = 4:3:3. Confirm the final specification and test method with the official TDS or COA.
● Good solubility in compatible alcohol-containing solvent systems
● Film-forming performance for selected flexographic and gravure printing inks
● Low acid and amine values for controlled formulation performance
● Two grades available for general and low-temperature-resistant solution requirements
● Solid particle form supports convenient storage, handling and dosing
● Flexographic Printing Inks: Binder resin for compatible inks used on selected plastic-film substrates.
● Gravure Paper Inks: Film-forming resin for compatible gravure printing ink systems used on paper.
● Alcohol-Soluble Ink Systems: Suitable for evaluation in formulations based on ethanol, isopropanol and compatible co-solvents.
● Low-Temperature Applications: HH-PA21C is intended for systems requiring improved solution stability at lower temperatures.
● Formulation Testing: Adhesion, resolubility, drying, gloss, blocking and storage stability should be verified in the complete ink formulation.
● 25 kg net per paper-plastic laminated bag.
● Approximately 18 MT per 20' FCL without pallets.
● Approximately 15 MT per 20' FCL with 20 pallets.
Store in the original sealed packaging in a cool, dry and well-ventilated area. Protect from moisture, direct sunlight and heat. Reseal opened bags promptly and prevent contamination with incompatible materials. Consult the current SDS for complete handling and safety information.
TDS, SDS, COA and sample information are available upon request. Please provide the required grade, quantity, destination port and intended application when contacting our sales team.
