CAS No.: 63428-84-2

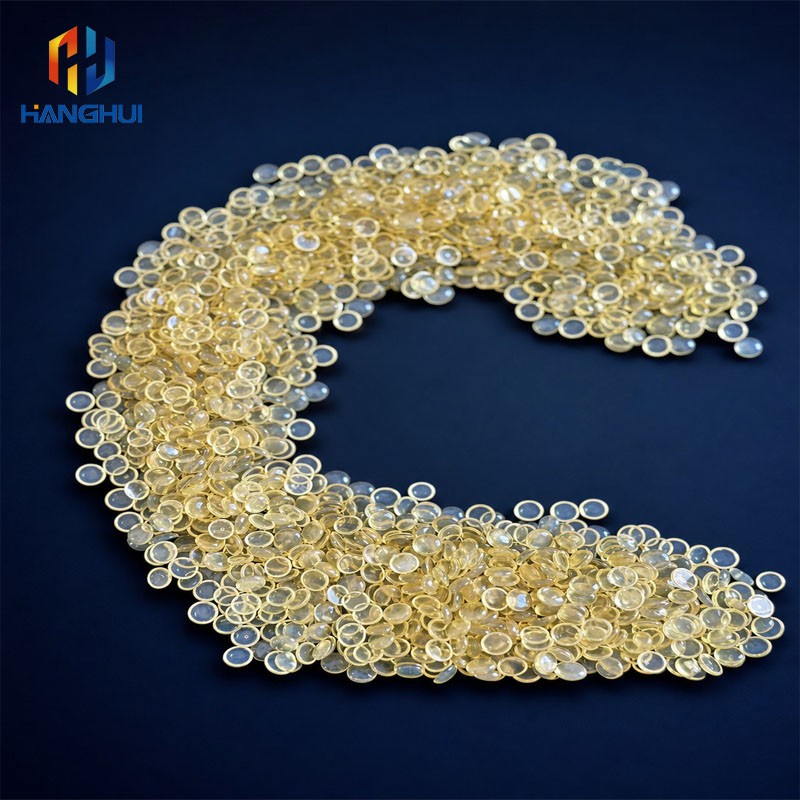

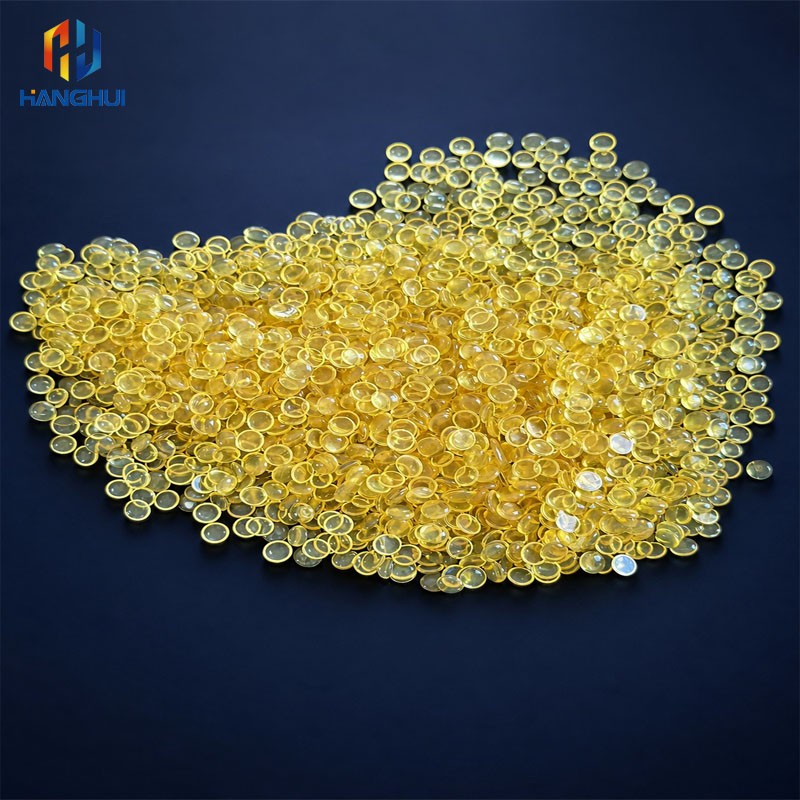

Appearance: Yellowish granulated transparent solid
Packing: Paper plastic compound bag, net weight 25 kg/bag. Quantity: 18 MT without pallets in 1 × 20' FCL; 15 MT with 20 pallets in 1 × 20' FCL.
Polyamide Resin is a solid resin designed for compatible gravure and flexographic printing ink systems. It provides good stability, adhesion, water resistance and high gloss, with additional performance for water-resistant and deep-freezing-resistant ink applications.
Hanghui offers three cosoluble grades: HH-PA11 for general applications, HH-PA11C for improved frost resistance and HH-PA11H for higher-viscosity requirements. Final suitability should be confirmed in the customer's complete ink formulation.
| Product Name | Polyamide Resin |
| CAS No. | 63428-84-2 |
| Available Grades | HH-PA11 / HH-PA11C / HH-PA11H |
| Appearance | Yellowish granulated transparent solid |
| Main Uses | Gravure ink, flexographic ink, paper-plastic ink, overprint varnish and deep-freezing-resistant ink |
| Property | HH-PA11 | HH-PA11C | HH-PA11H |
|---|---|---|---|
| Grade Description | General cosoluble | Frost-resistant cosoluble | High-viscosity cosoluble |
| Color | ≤ 7 | ≤ 7 | ≤ 7 |
| Acid Value (mg KOH/g) | ≤ 5 | ≤ 5 | ≤ 5 |
| Amine Value (mg KOH/g) | ≤ 4 | ≤ 4 | ≤ 4 |
| Softening Point (℃) | 110 ± 5 | 105 ± 5 | 110 ± 5 |
| Freezing Point (℃) | ≤ 7 | −2 ± 5 | ≤ 7 |
| Viscosity (mPa·s / 25 ℃) | 90–160 | 80–160 | 150–180 |
Typical mixing proportion: 40% resin and 60% solvent. Recommended solvent blend: xylene / IPA / ethanol = 4:3:3. Confirm the final specification and test method with the official TDS or COA.
● Good stability and adhesion in compatible ink formulations
● High gloss and good water resistance
● Improved resistance to water and ice crinkle effects
● Three grades for general, frost-resistant and high-viscosity requirements
● Granulated solid form supports convenient storage, handling and dosing
● Gravure Printing Inks: Binder resin for compatible gravure ink systems.
● Flexographic Printing Inks: Resin for flexible packaging and selected film substrates.
● Paper-Plastic Composite Inks: Supports adhesion and gloss in compatible paper-plastic printing systems.
● Overprint Varnishes: Helps provide a glossy and protective surface layer.
● Deep-Freezing-Resistant Inks: HH-PA11C is suitable for evaluation where improved low-temperature resistance is required.
● Bread Packaging Inks: Suitable for evaluation in compatible packaging ink formulations.

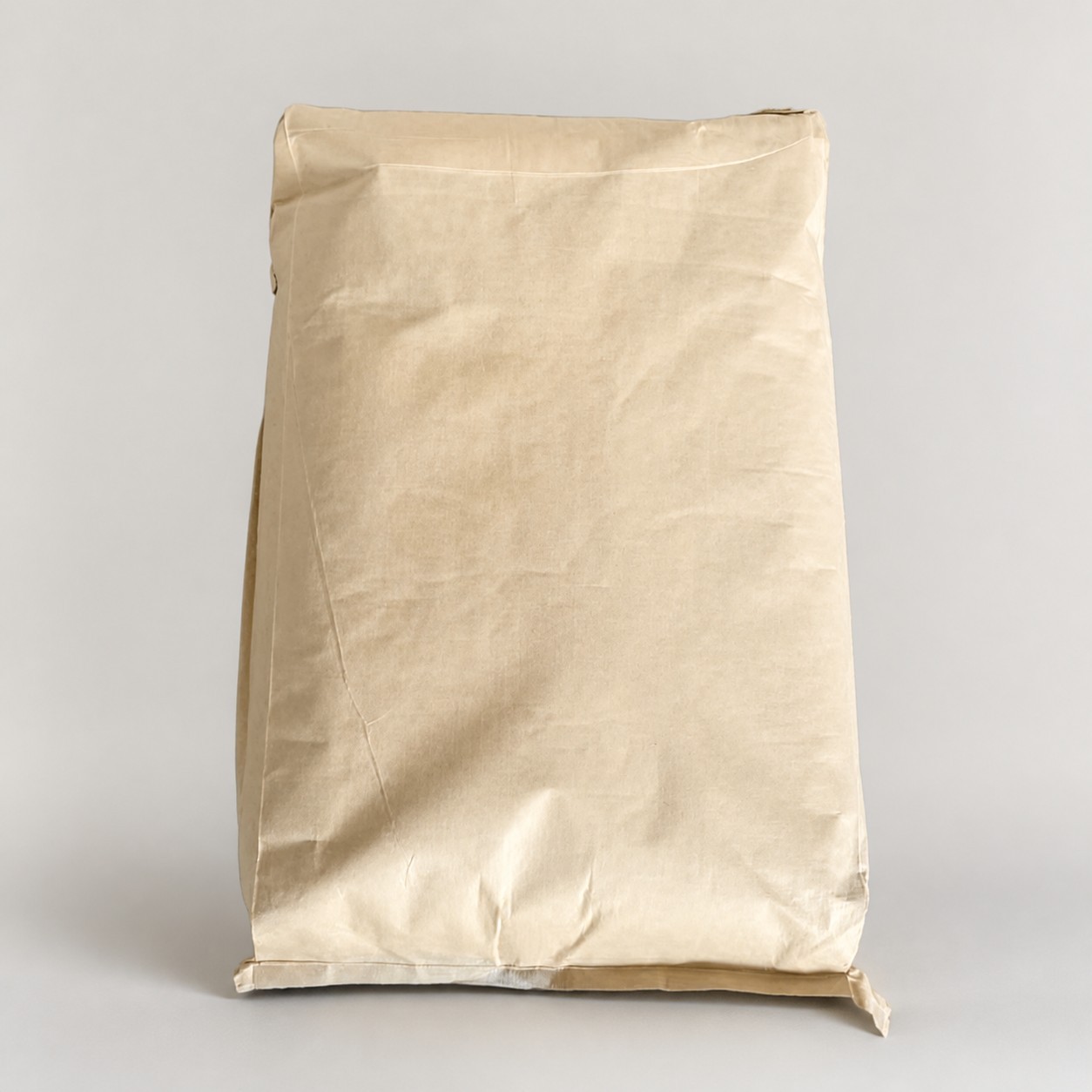

● 25 kg net per paper-plastic compound bag.
● Approximately 18 MT per 20' FCL without pallets.
● Approximately 15 MT per 20' FCL with 20 pallets.
Store in the original sealed packaging in a cool, dry and well-ventilated area. Protect from moisture, direct sunlight and heat. Reseal opened bags promptly and consult the current SDS for complete handling and safety information.
TDS, SDS, COA and sample information are available upon request. Please provide the required grade, quantity, destination port and intended application when contacting our sales team.
