CAS No.: 25767-39-9

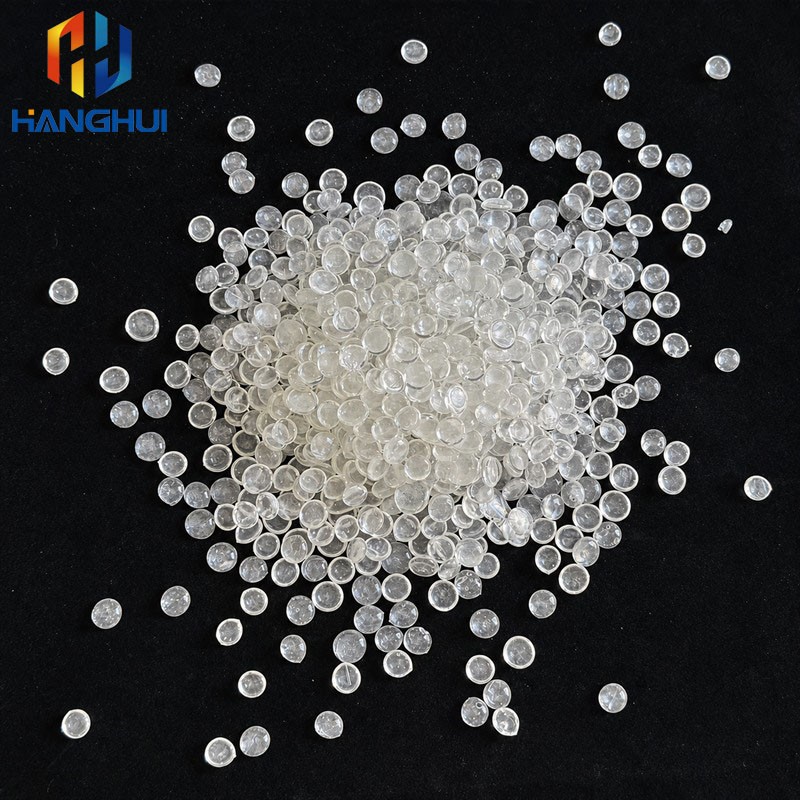

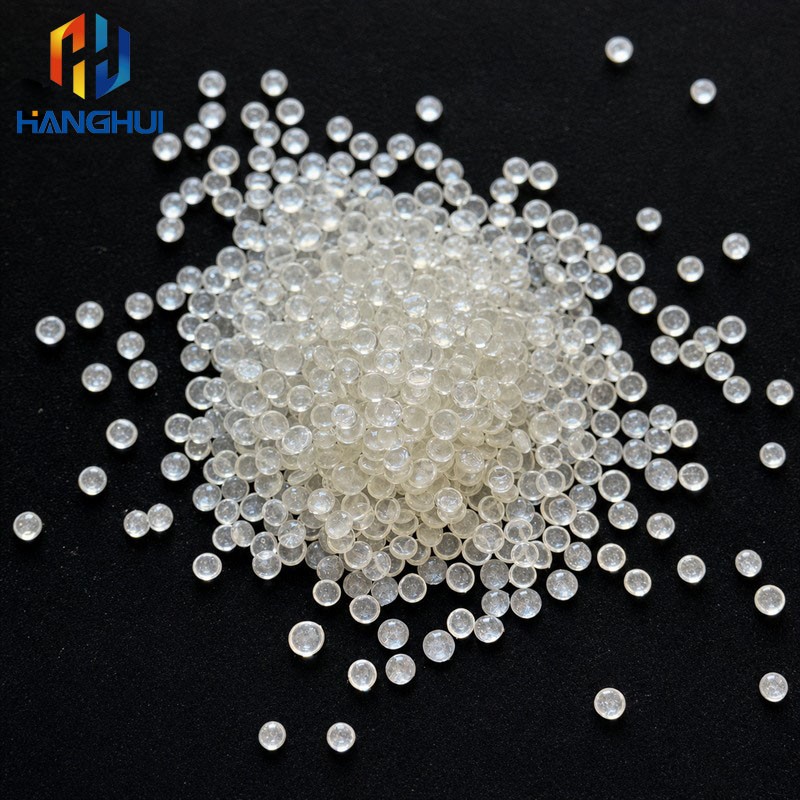

Appearance: Transparent solid
Packing: Paper-plastic compound bag, net weight 25 kg/bag.
Hanghui H64, H67 and H608 are water-soluble solid styrene-acrylic resins supplied for water-based printing ink, pigment dispersion and overprint varnish formulations. The three grades provide different molecular weights, softening points and glass-transition temperatures for formulation selection.
These resins can be used as binders or pigment-grinding resins. After suitable neutralization and dissolution, they provide resin compatibility, pigment wetting, gloss, transparency and transfer performance according to the selected grade and complete formulation.
Grade selection should be based on the printing process, pigment system, required gloss, drying response, film hardness and compatibility with the emulsion or other binders used in the formulation.
| Product Name | Water-Soluble Solid Acrylic Resin |
| Product Type | Solid styrene-acrylic resin |
| Grades | H64, H67，H608 |
| CAS No. | 25767-39-9 |
| Appearance | Transparent solid |
| Primary Applications | Pigment grinding, water-based printing inks, polymer emulsion synthesis and varnishes |
The H-series solid acrylic resins are intended for water-based systems requiring pigment dispersion, gloss, transparency and solubility. They can be used as the main grinding resin or combined with compatible acrylic emulsions and other binders.
H64 is positioned as a high-molecular-weight grade with high gloss, clarity and low VOC potential in a suitable water-based formulation. H67 is a high-molecular-weight grade selected for gloss, clarity and solubility. H608 is a medium-molecular-weight grade intended for good transferability, print adaptability and solubility.
| Item | H64 | H67 | H608 |
|---|---|---|---|
| Appearance | Transparent solid | Transparent solid | Transparent solid |
| Resin Solid | >99% | >99% | >99% |
| Molecular Weight | 5700 | 12800 | 8500 |
| Acid Number | 210-220 | 210-220 | 210-220 |
| Softening Point | 120℃ | 155℃ | 165℃ |
| Tg | 102℃ | 120℃ | 85℃ |
| Density at 25℃ | 1.24 | 1.13 | 1.16 |
| Features | Common type high molecular weight of solid acrylic resin, high gloss, clear, transparent, and solubility. Low Voc for dispear paste | Common type high molecular weight of solid acrylic resin, high gloss, clear, transparent, and solubility | Common type medium molecular weight of solid acrylic resin, excellent transferability, print adaptability and solubility |
| Main Applications | Pigment grinding, printing ink, synthesis of emulsion polymer emulsion, Varnish | Pigment grinding, printing ink, synthesis of emulsion polymer emulsion | Pigment grinding, printing ink, synthesis of emulsion polymer emulsion |
| Equivalent product | BASF Joncryl H67 Hanwa Soluryl 120 | BASF Joncryl H678 | |
| VOC: less than 1wt.% | |||
The Specification table above is reproduced from the existing product information. Refer to the sales contract and batch COA for shipment acceptance.
• H64: Consider for pigment grinding, printing inks, emulsion synthesis and varnishes where high gloss, clarity and solubility are required.
• H67: Consider for pigment grinding, printing inks and emulsion synthesis requiring a higher-molecular-weight solid acrylic resin.
• H608: Consider for pigment grinding and printing ink systems requiring transferability, print adaptability and solubility.
• Equivalent-product information is provided for grade-selection reference. Customers should confirm suitability through formulation and production testing.
Select the grade according to the required molecular weight, softening point, Tg and printing performance. The neutralizing agent, water ratio, dissolution temperature and addition level should be established through laboratory testing.
For pigment grinding, confirm pigment wetting, dispersion viscosity, color development and storage stability. When used with an acrylic emulsion or another binder, check compatibility, gloss, drying, water resistance and final print performance before production.

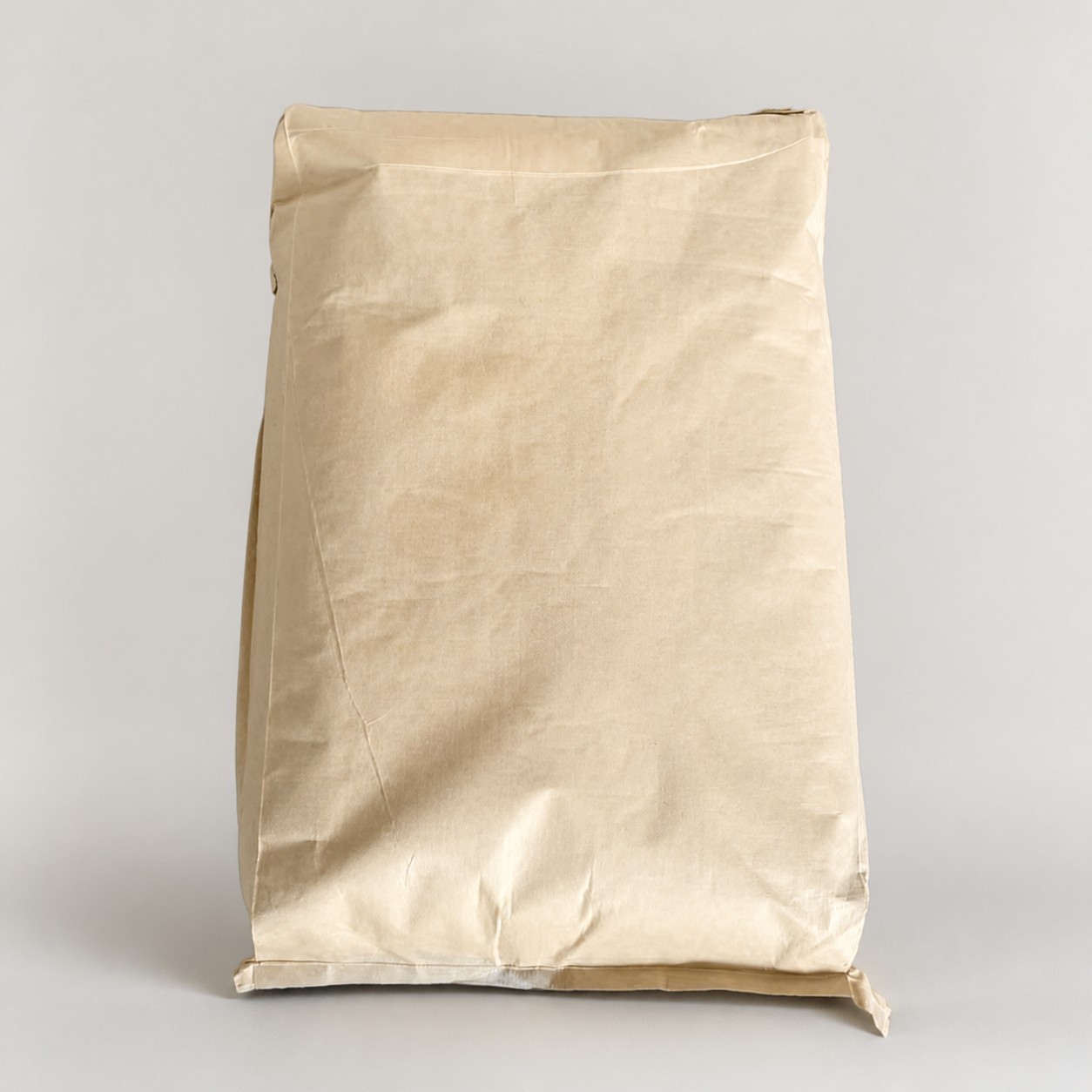

• Paper-plastic compound bag, net weight 25 kg/bag.
• Loading quantity: approximately 16 MT without pallets in one 20' FCL.
• Loading quantity: approximately 12 MT with 20 pallets in one 20' FCL.
• Keep bags sealed and store in a cool, dry and well-ventilated warehouse.
• Protect from moisture, rain, direct sunlight, excessive heat and package damage during transportation and storage.
Current TDS, SDS, batch COA and sample information are available upon request. Please state the required grade, intended ink or varnish system, quantity and destination port when contacting our sales team.
